Quick Details

  • Type: Immunoassay System
  • Brand Name: Diatek
  • Model Number: DR-3508
  • Place of Origin: Jiangsu, China (Mainland)
  • Color: White and Blue
  • Display: 320 * 240 LCD diaplay
  • Language Version: English
  • Wavelength: 400~800nm
  • Standard Filters: 405,450,492,630nm
  • Additional Filters: On request, filter wheel for up to 8 filters
  • Light Source: 8V/50W tungsten halogen lamp
  • Printer: Built-in thermal printer
  • Operate: Touch screen,PC software
  • Power Supply: 100~240V, 50~60Hz

Packaging & Delivery

Packaging Details Double carton;Carton dimension: 33cm*46cm*59cm
Delivery Time 7 work days after payment received
Product Description



  96 /48 well Elisa Plate Reader






         This  Elisa  Reader  is  developed by our company independently , it  is  a  kind  of  intelligent  optical  type  microplate analyzer. It can be operated by 320 × 240 LCD touch screen or PC software.The interface connection of this elisa plate reader including USB,Serial RS-232,Printer interface,P32 Mouse and Keyboard.

         It  can  be  used  to  test  clinical  diagnosis  of   infectious  diseases,  tumor markers, blood  disease, AIDS, endocrine disorders  and  any  other  inspections which  need elisa to test.

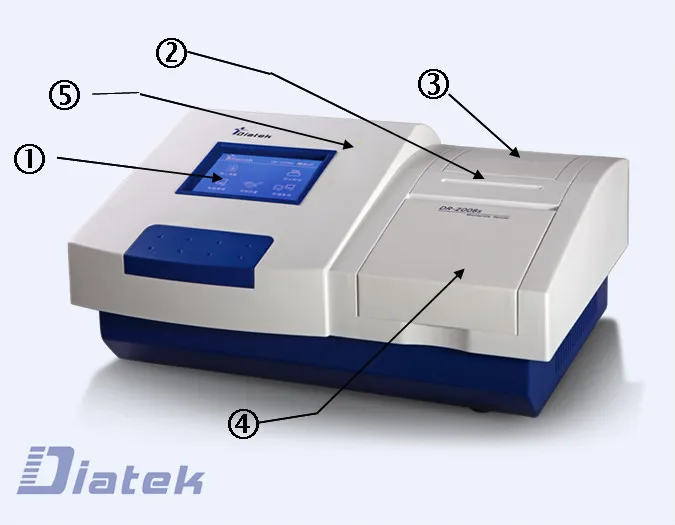

Picture Show





Main Features

* Graphical operating interface, menu designed for convenient use


* High brightness and large size LCD, with touch screen input


* Flexible Plate layout with Blanks, Standards, Samples, Reference, QC in one screen


* Single or dual wavelength measurements, comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas


* Proven optical system with 8 channel optical fiber scanning, auto plate centering system positions the center of the cell accurately


* Performing 12 different tests just in one plate


* Multi-forms in result output including patient comprehensive report


* Auto Lamp adjustment and auto calibration, improve the efficiency of the system and reduce the cost


* Optional external mouse action and standard keyboard


* With serial RS-232 interface and parallel interface


* Easy connect to PC , comprehensive functions with Found WordStation PC software


 Technical Specefication


*Photodetector: Silicon Photodiode

*Plate Style:48-hole,96-hole microplate or bar plate

*Light source: 8V/50W tungsten halogen lamp

*Wavelength range: 400nm~800nm

*Indication range: 0.000~4.000OD

*Accuracy: ±1.0% at 1.0 OD, 450nm

*Reproducibility: ±1.0% at 1.0 OD, 450nm


*Standard filters: 405,450,492,630nm

*Additional filters: on request, filter wheel for up to 8 filters

*Shaking: Linear Shaking , 3 speeds

*Display: 320 × 240 LCD

*Interface connections: USB ,Serial RS-232 ,Printer interface ,P32 Mouse,Keyboard

*Warranty 1 Year

*Certifications ISO 9001, ISO 13485

*Power supply: 100~240V, 50~60Hz

*Dimensions/ weight: 460×350×197mm/11kg


Product Details


Top  View





Rear  View




Application Field


Product Line
